封閉的負溫度系數（NTC）熱敏電阻，p / n 1600-10K，通過將溫度轉換為電阻來工作，電阻降低為溫度升高（因此'負系數'）。


該Steinhart-Hart方程

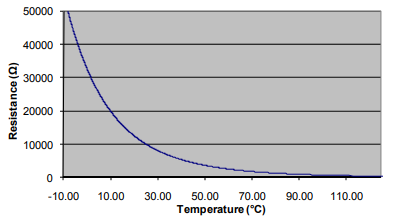

熱敏電阻電阻與溫度圖表

°C	R值(Ω)	°C	R值(Ω)	°C	R值(Ω)	°C	R值(Ω)	°C	R值(Ω)
-80	7,296,874	-30	176,683	20	12,493.70	70	1 751.60	120	388.59
-79	6,677,205	-29	166,091	21	11,943.30	71	1 693.00	121	378.44
-78	6,114,311	-28	156,199	22	11,420.00	72	1 636.63	12	368.59
-77	5,602,677	-27	146,959	23	10,922.70	73	1 582.41	123	359.05
-76	5,137,343	-26	138,322	24	10,449.90	74	1 530.28	124	349.79
-75	4,713,762	-25	130,243	25	10,000.00	75	1 480.12	125	340.82
-74	4,327,977	-24	122,687	26	9,572.00	76	1 431.87	126	332.11
-73	3,966,352	-23	115,613	27	9 164.70	77	1 385.37	127	323.67
-72	3,655,631	-22	108,991	28	8,777.00	78	1,340.68	128	315.48
-71	3,362,963	-21	102,787	29	8 407.70	79	1 297.64	129	307.53
-70	3,095,611	-20	96,974	30	8,056.00	80	1,256.17	130	299.82
-69	2,851,363	-19	91 525	31	7 720.90	81	1 216.23	131	292.34
-68	2,627,981	-18	86,415	32	7 401.70	82	1 177.75	132	285.08
-67	2,423,519	-17	81,621	33	7,097.20	83	1 140.71	133	278.03
-66	2,236,398	-16	77,121	34	6,807.00	84	1,104.99	134	271.19
-65	2,064,919	-15	72,895	35	6,530.10	85	1,070.58	135	264.54
-64	1,907,728	‐14	68,927	36	6,266.10	86	1,037.40	136	258.09
‐63	1,763,539	‐13	65,198	37	6,014.20	87	1,005.40	137	251.82
‐62	1,631,173	‐12	61,693	38	5,773.70	88	974.56	138	245.74
‐61	1,509,639	‐11	58,397	39	5,544.10	89	944.81	139	239.82
‐60	1,397,935	‐10	55,298	40	5,324.90	90	916.11	140	234.08
‐59	1,295,239	‐9	52,380	41	5,115.60	91	888.41	141	228.5
‐58	1,200,732	‐8	49,633	42	4,915.50	92	861.7	142	223.08
‐57	1,113,744	‐7	47,047	43	4,724.30	93	835.93	143	217.8
‐56	1,033,619	‐6	44,610	44	4,541.60	94	811.03	144	212.68
‐55	959,789	‐5	42,314.60	45	4,366.90	95	786.99	145	207.7
‐54	891,689	‐4	40,149.50	46	4,199.90	96	763.79	146	202.86
‐53	828,865	‐3	38,108.50	47	4,040.10	97	741.38	147	198.15
‐52	770,880	‐2	36,182.80	48	3,887.20	98	719.74	148	193.57
‐51	717,310	‐1	34,366.10	49	3,741.10	99	698.82	149	189.12
‐50	667,828	0	32,650.80	50	3,601.00	100	678.63	150	184.79
‐49	622,055	1	31,030.40	51	3,466.90	101	659.1
‐48	579,718	2	29,500.10	52	3,338.60	102	640.23
‐47	540,530	3	28,054.20	53	3,215.60	103	622
‐46	504,230	4	26,687.60	54	3,097.90	104	604.36
‐45	470,609	5	25,395.50	55	2,985.10	105	587.31
‐44	439,445	6	24,172.70	56	2,876.90	106	570.82
‐43	410,532	7	23,016.00	57	2,773.20	107	554.86
‐42	383,712	8	21,921.70	58	2,673.90	108	539.44
‐41	358,806	9	20,885.20	59	2,578.50	109	524.51
‐40	335,671	10	19,903.50	60	2,487.10	110	510.06
‐39	314,179	11	18,973.60	61	2,399.40	111	496.08
‐38	294,193	12	18,092.60	62	2,315.20	112	482.55
‐37	275,605	13	17,257.40	63	2,234.70	113	469.45
‐36	258,307	14	16,465.10	64	2,156.70	114	456.76
‐35	242,195	15	15,714.00	65	2,082.30	115	444.48
‐34	227,196	16	15,001.20	66	2,010.80	116	432.58
‐33	213,219	17	14,324.60	67	1,942.10	117	421.06
‐32	200,184	18	13,682.60	68	1,876.00	118	409.9
‐31	188,026	19	13,052.80	69	1,812.60	119	399.08
